Description
-

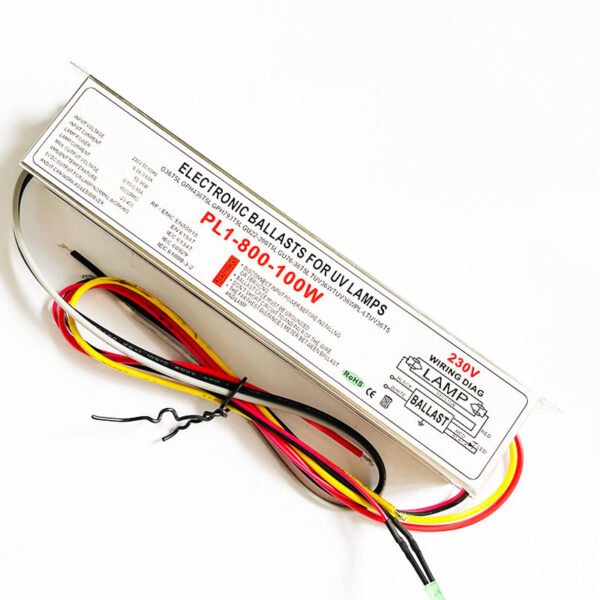

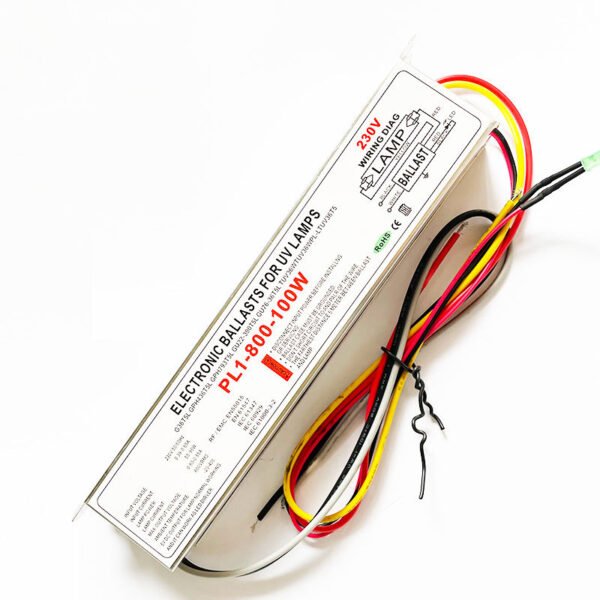

Ballast model：PL1-800-100
-
Lamp brand：LIGHTSOURCES，PHILIPS
-
Lamp tube model：GHO36T5，GPH846T5HO，GPH893T5HO，TUV 55W HO，TUV 60W HO，TUV 75W HO，TUV36T5HO，TUV95WHOPL-L
-
Lamp wattage：54.0W～95.0W
-
Lamp tube flow：0.770A～0.840A
-
Number of lamps：1
Features
1. Suitable for places with less than 3 times of daily switching
2. 5VDC output function, when UV lamp works normally, output 5VDC when UV lamp is off
3. It can directly drive LED
Description
Input Characters
● Rated Input Voltage：220V/230V
● Rated Frequency: 50/60Hz
● Effective Input Voltage：198V~264V
● Max. Input Power：100W
● Max. Input Current：0.48A@230V
● Power Factor PF：>0.9
● Efficiency η：>90%
Output Characters
● Loaded Lamp：GPH846T5HO,GPH893T5HO,GHO36T5,TUV36T5HO,TUV55WHO,TUV75WHO,TUV95WHOPL-L,TUV60WHO
● Output Current：0.75A~0.85A
● Start：Instant start, suitable for the field less than 3 switch on/off cycles.

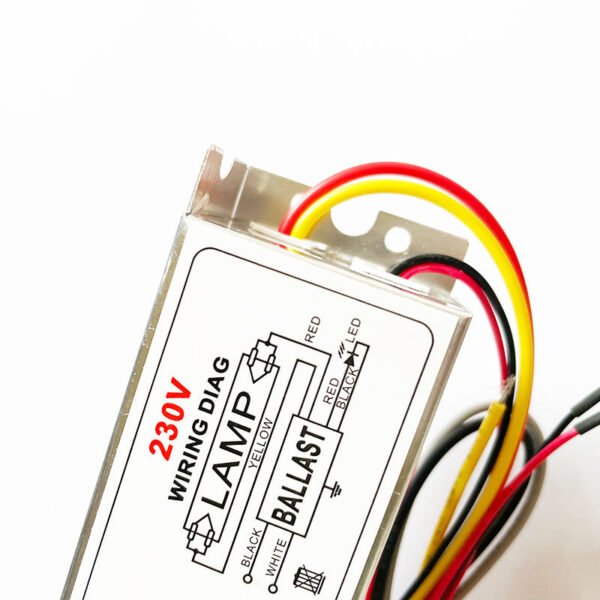

● With lamp condition indicator:5VDC output. Output 5VDC when the lamp under normal working condition, which could be connected with LED indicator. OVDC when the lamp off.
